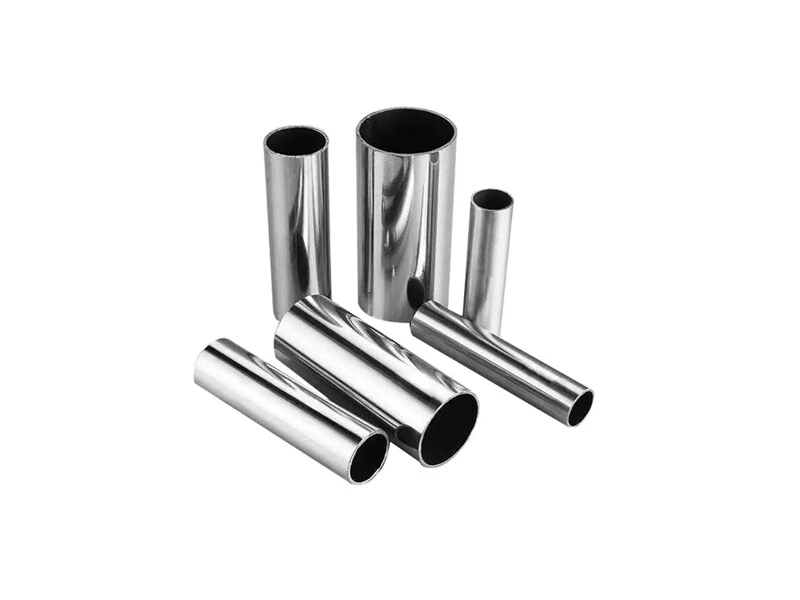

316 Stainless Steel Pipe
316 stainless steel contains 2-3% molybdenum, aside from iron, chromium and nickel. The addition of molybdenum significantly improves the performance of 316 stainless steel in certain corrosive environments, especially those containing chlorides. 316 stainless steel is more commonly used when higher corrosion resistance is needed.
Request A Sample
Product Description
Spot Warehouse
Product Packaging
Product Description 316 Stainless Steel Pipe

316 stainless steel pipe is recognized in the stainless industry for a number of key reasons. Grade 316 is the standard molybdenum-bearing austenitic grade, which is strongly invulnerable to pitting and crevice corrosion in chloride environments. So 316 stainless steel is commonly adopted in situations where higher corrosion resistance is required. For example, 316 stainless steel is often used to manufacture ship parts, subsea pipelines, offshore platforms and other facilities. In the chemical industry, it is also commonly used to produce equipment such as storage tanks, reactors and pipelines. In addition, 316 stainless steel is also widely used to manufacture medical devices and implants due to its excellent biocompatibility and corrosion resistance.


Product Parameters

Product Name

316 Stainless Steel Pipe

Type

Steel Pipe

Outer diameter

Round Tube

4mm-200mm

Square Tube

10*10mm-100*100mm

Rectangular Tube

10*20mm-50*100mm

Wall Thickness

0.6mm-6.0mm

Length

1-6 meters, Length can be customized

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.

Scope of Application

Common applications for stainless steel pipes include food processing,

Textile operations, Breweries, Water treatment plants, Oil and gas processing,

Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc.

Certificate

ISO, SGS, BV, CE, MTC, etc.

Production Technology

Welded, Seamless

Chemical Composition
Mechanical Properties
CSiMnCrNiS

P

Mo
≤ 0.03≤ 0.75≤ 2.016.0~18.010.0~14.0≤ 0.03≤ 0.0452.0~3.0
Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥480≥177≥ 40≤ 187HB;≤ 90HRB;≤ 200HV

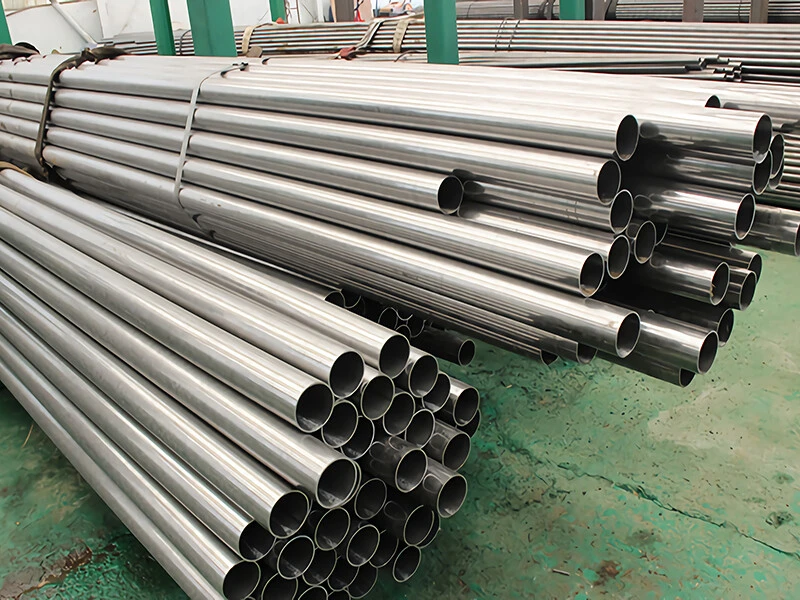

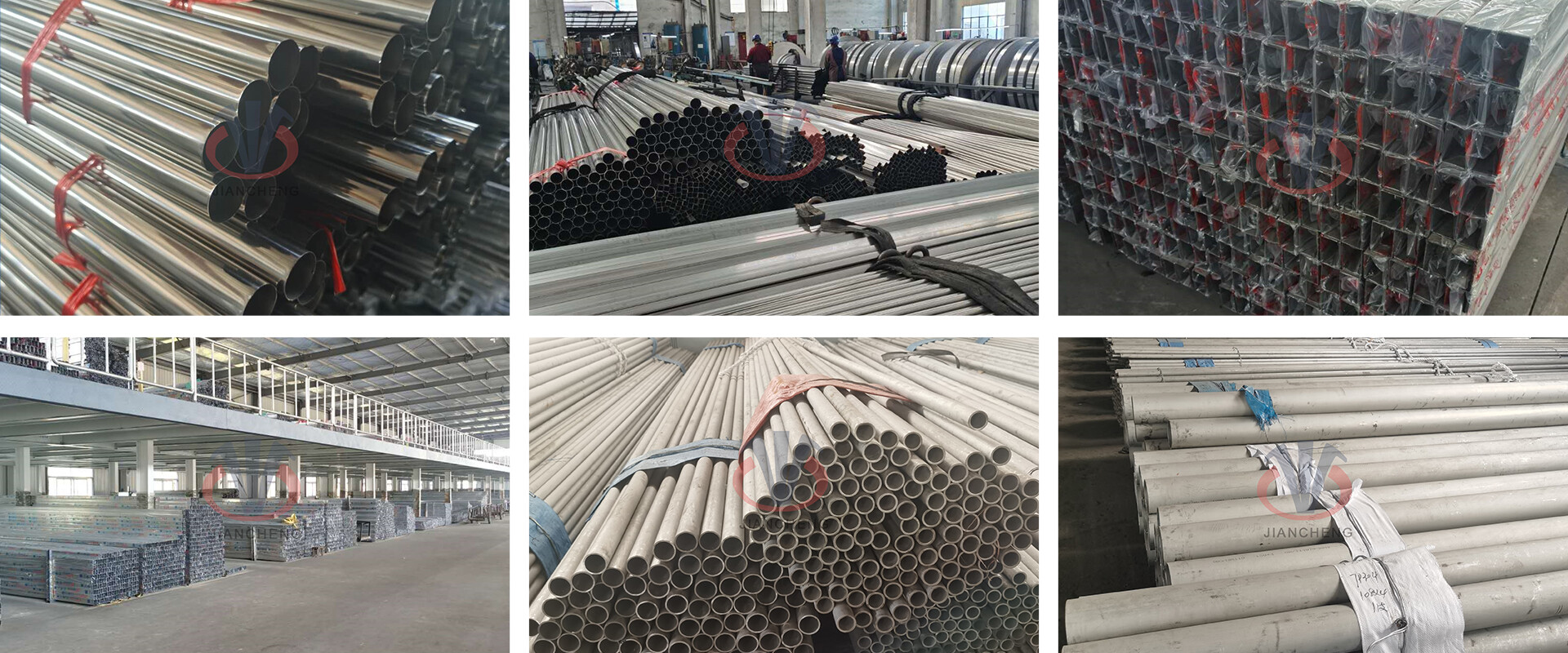

Stock Warehouse-316 Stainless Steel Pipe

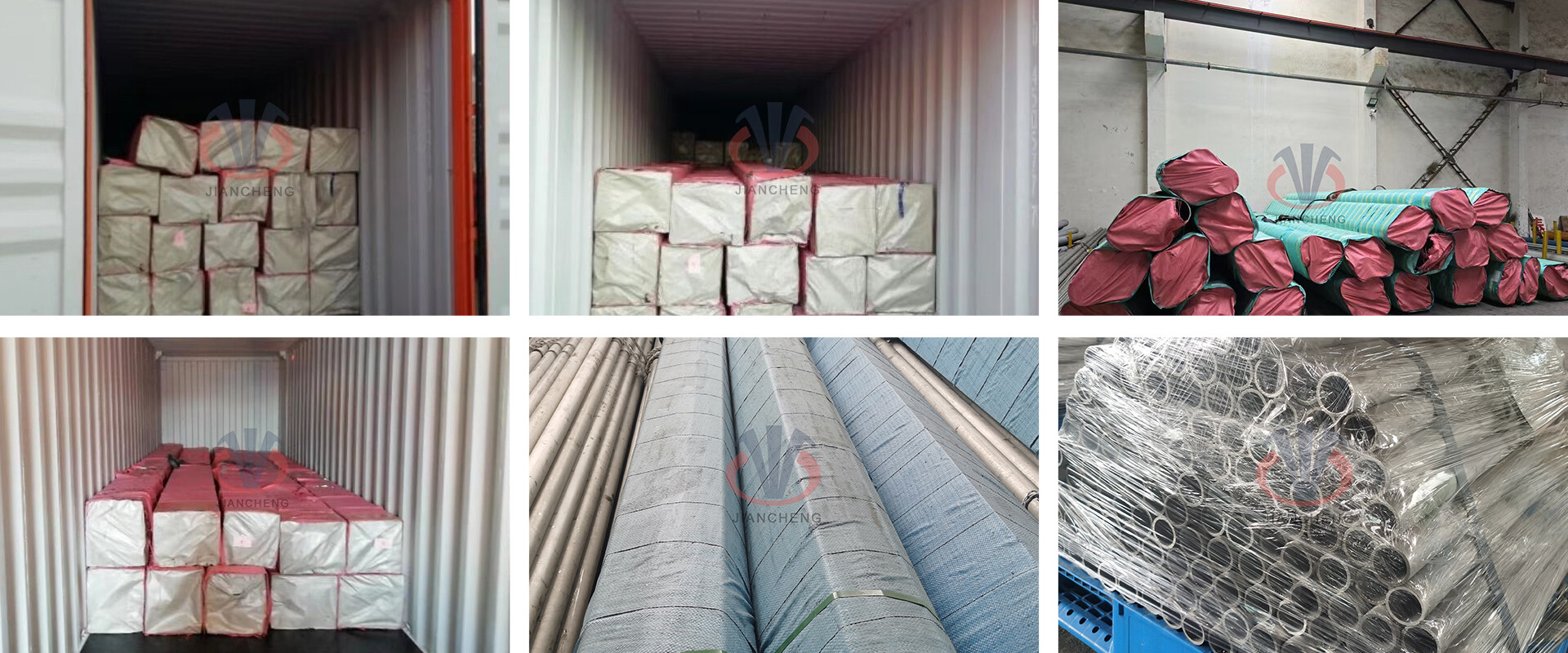

Product Packaging-316 Stainless Steel Pipe
