ASTM A283 Steel Plate
ASTM A283 plate steel features low and intermediate tensile strength carbon steel plate of structural quality. The ASTM A283 steel specification covers four structural quality grades of mild steel, grades A, B, C, and D, for general application.
Request A Sample
Product Description
Spot Warehouse
Product Packaging
Product Description ASTM A283 Steel Plate

ASTM A283 plate steel features low and intermediate tensile strength carbon steel plate of structural quality. The ASTM A283 steel specification covers four structural quality grades of mild steel, grades A, B, C, and D, for general application.


Product Parameters

Product NameASTM A283 Steel Plate
Width100mm-3000mm
Length1m-12m, or Customized Size
Thickness0.1mm-400mm
CerticficateISO/SGS/CE/BV
Delivery ConditionsRolling, Annealing, Quenching, Tempered or Standard


Chemical Composition
Mechanical Properties
A283C max.Mn max.P max.S max.Si (Greater1 inch, less than 1/2 inch)Si (Greater 1/2 inch)Cu min.
Grade C0.240.900.0350.040.400.15-0.400.20
Grade D0.270.900.0350.040.400.15-0.400.20
A283Tensile Strength

Yield Strength min.

Elongation Rate 8 inches

Elongation Rate 2 inches

Grade C

55000-75000 psi380-515 MPa30000 psi205 MPa22 % min.25 % min.
Grade D60000-80000 psi415-550 MPa33000 psi230 MPa20 % min.23 % min.


APPLICATIONS &INDUSTRIES

Energy, for use in constructing transmission towers and wind turbine structures and components
Construction, for use in producing construction equipment
Industrial manufacturing, for use in producing machinery and truck parts
Road plate applications

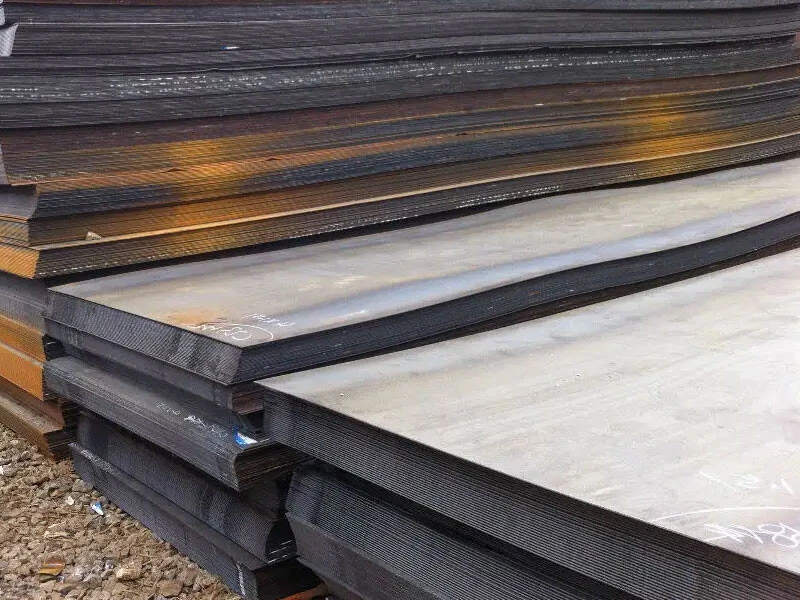

Stock Warehouse-ASTM A283 Steel Plate



Product Packaging-ASTM A283 Steel Plate
