A514 Carbon Steel Coil
ASTM A514 steel is available in several grades. And they have the same mechanical properties. ASTM A514 steel coils are conventionally quenched and tempered steel with high yield strength, weldability and toughness. ASTM A514 steel is a special high-strength steel, mainly used as building structural steel.
Request A Sample
Product Description
Spot Warehouse
Product Packaging

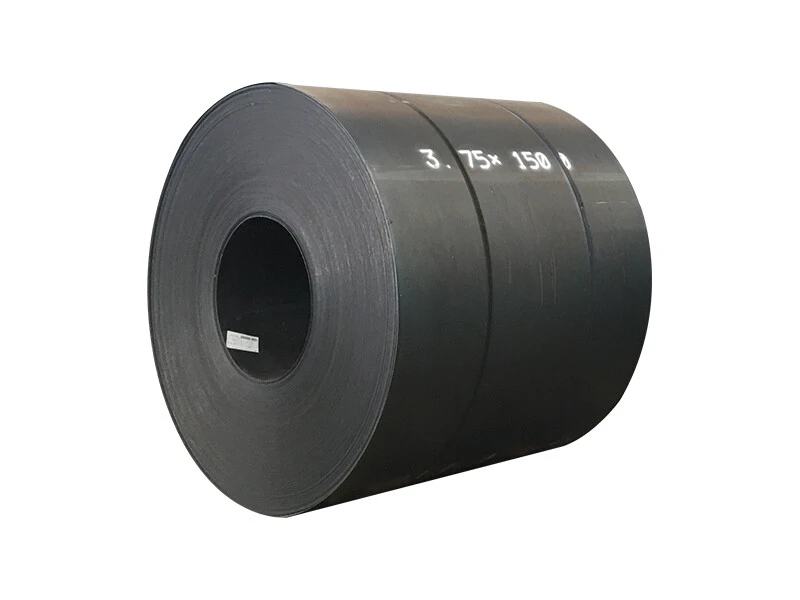

Product Description A514 Carbon Steel Coil

A514 steel coil is a high-strength low-alloy steel coil. Its main components include carbon, silicon, manganese, phosphorus, sulfur, chromium, and nickel, molybdenum, vanadium. The characteristic of A514 steel coil is that it has extremely high strength and toughness, and can obtain higher strength through heat treatment. A514 steel coils are usually used in machinery manufacturing fields that need to withstand high pressure or high temperature environments. That is why they are widely used in petrochemical, aerospace, nuclear industry, military and offshore platforms. In addition, such coils have good weldability and processability, and are also suitable for many other fields.


Product Parameters

Product NameA514 Carbon Steel Coil
Production ProcessHot Rolling, Cold Rolling
Material StandardsAISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width45mm-2200mm
LengthCustom Size
Thickness

Hot Rolling: 2.75mm-100mm

Cold Rolling: 0.2mm-3mm

Delivery ConditionsRolling, Annealing, Quenching, Tempered or Standard


Chemical Composition
Mechanical Properties
A514CMnPSNiCrMo
Grade A0.15-0.210.80-1.100.0350.4-0.8-0.5-0.80.18-0.28
Grade B0.12-0.210.70-1.00.0350.20-0.35-0.4-0.650.15-0.25
Grade C0.1-0.21.10-1.50.0350.15-0.30--0.15-0.30
Grade E0.12-0.200.4-0.70.0350.2-0.4-1.40-2.00.4-0.6
Grade F0.1-0.20.60-1.00.0350.15-0.350.70-1.00.4-0.650.4-0.6
Grade H0.12-0.210.95-1.30.0350.20-0.350.3-0.70.4-0.650.2-0.3
Grade J0.12-0.210.45-0.70.0350.20-0.35--0.50-0.65
A514Thickness mm

Yield Strength Min Mpa

Tensile Strength Mpa

Elongation Rate Min%

20

690760-89518
20-65690760-89518
65-150620690-89518


APPLICATIONS &INDUSTRIES

A514 steel plate is typically used for applications that require high resistance to wear and great strength without sacrificing weldability and machinability, such as construction equipment – like cranes – and use in industrial manufacturing, including heavy-load machines.

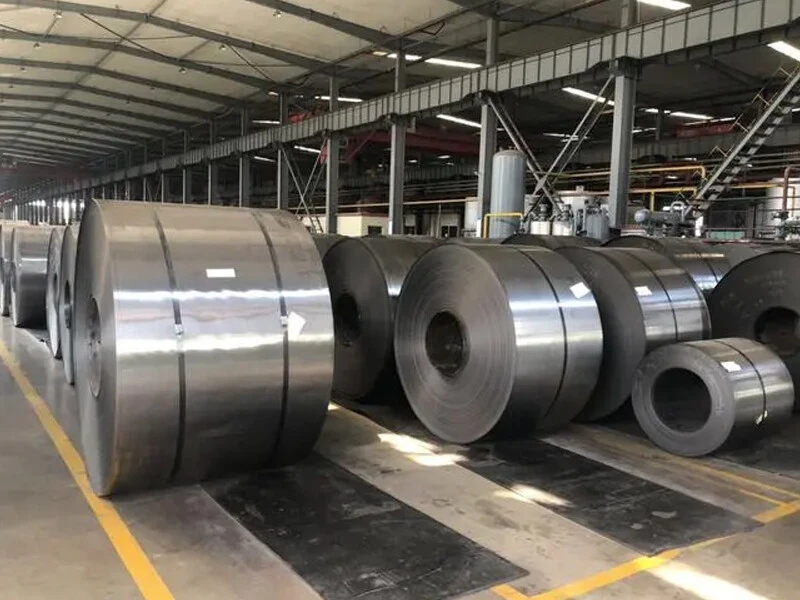

Stock Warehouse-A514 Carbon Steel Coil

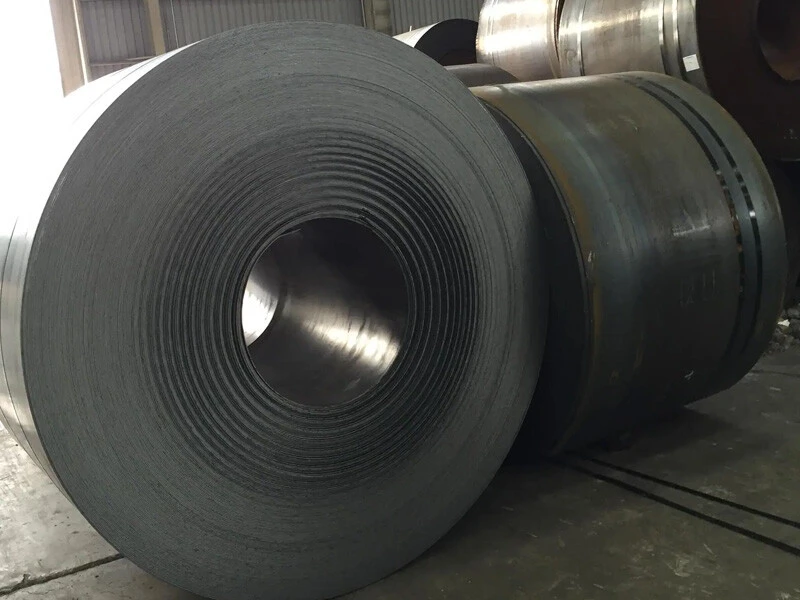

Product Packaging-A514 Carbon Steel Coil
