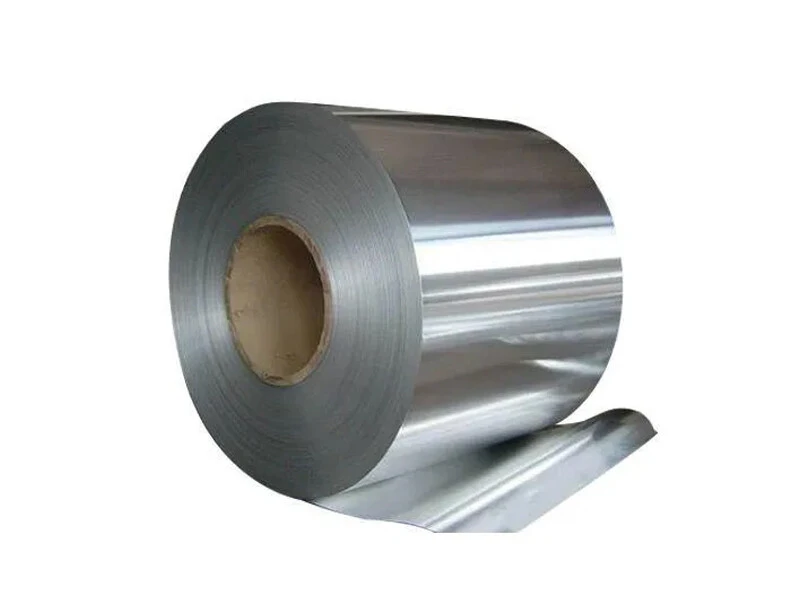

Incoloy 800H / 800HT Coil
Incoloy 800H coil is made of an austenitic heat-resistant alloy widely used in high-temperature environments. It has attracted much attention because of its good high-temperature strength, oxidation resistance and corrosion resistance. Incoloy 800H is widely used in equipment manufacturing in various high-temperature environments, such as aerospace, petrochemical, energy and other fields.
Request A Sample
Product Description
Spot Warehouse
Product Packaging
Product Description Incoloy 800H / 800HT Coil

Incoloy 800H is a nickel-based alloy containing approximately 22% chromium, 39% iron, and 33% nickel, with the balance being carbon, silicon, manganese and other elements. This alloy has excellent high temperature resistance, its maximum operating temperature can reach 1100°C, and it also has good toughness and ductility at room temperature. In addition, Incoloy 800H also has excellent oxidation resistance and corrosion resistance, and can maintain a long service life in high temperature environments. Incoloy 800H coil has good processing properties and can be used for hot and cold processing. During thermal processing, the heating temperature and cooling rate should be controlled to avoid cracks and deformation.


Product Parameters

Product Name

Incoloy 800H / 800HT Coil

Thickness

2.5mm-10.0 mm

Length

2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc.

Width

610-2000 mm

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.

Certificate

ISO, SGS, BV

Production Technology

Hot Rolling, Cold Rolling

Chemical Composition
Mechanical Properties

C

Al

Si

S

Ti

Cr

Mn

Fe

Ni

Cu

0.1 max

0.15 - 0.60

1.0 max

0.015 max

0.15 - 0.60

19.0 - 23.0

1.5 max

39.5 min

30.0 - 35.0

0.75 max

Tensile Strength (ksi)

0.2% Yield Strength (ksi)Elongation% in 2 inches
753030

APPLICATIONS &INDUSTRIES

Used in industrial furnaces, heat treatment equipment, chemical and petrochemical processing, superheaters and reheaters in power plants, pressure vessels, heat exchangers, etc.

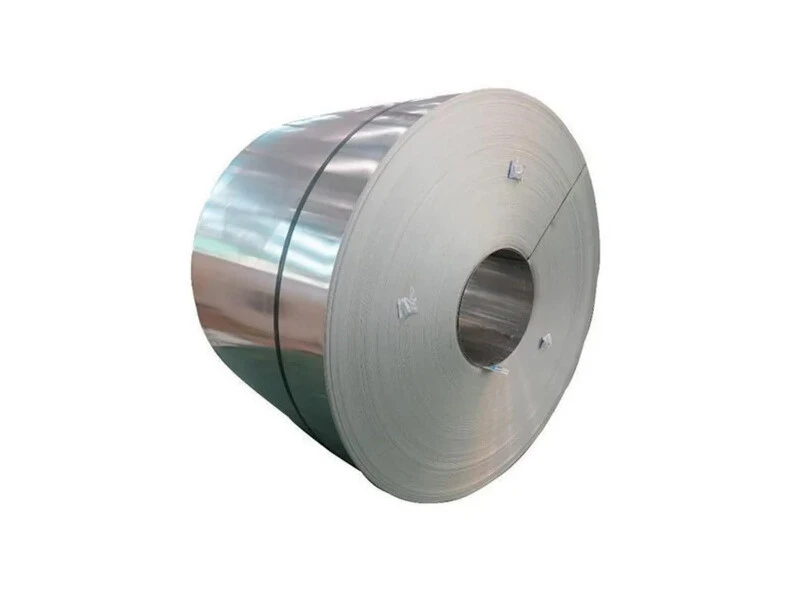

Stock Warehouse-Incoloy 800H / 800HT Coil

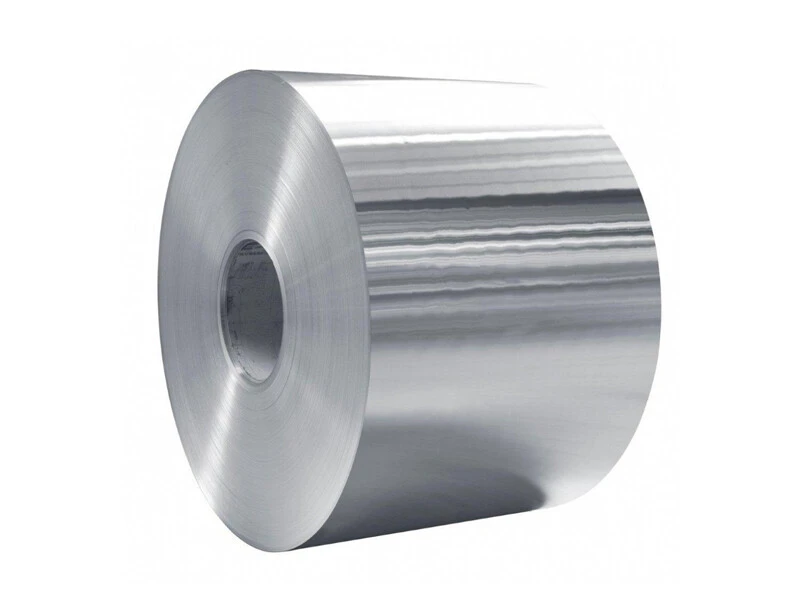

Product Packaging-Incoloy 800H / 800HT Coil
