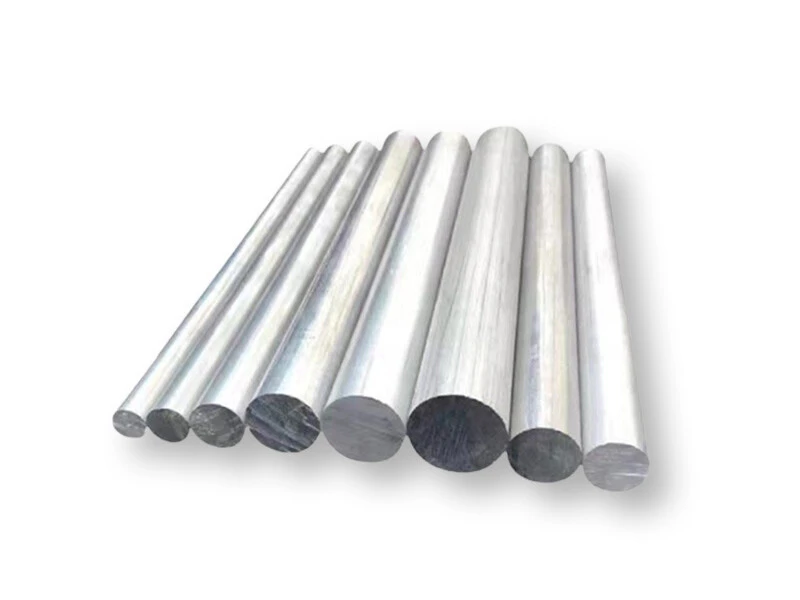

Hastelloy B-3 Bar
Hastelloy B3 bar has better strength and corrosion resistance at high temperatures compared with traditional Hastelloy. B3 alloy shows excellent stability and durability, especially in oxidizing and reducing environments, as well as corrosive environments such as strong acid and strong alkali.
Request A Sample
Product Description
Spot Warehouse
Product Packaging
Product Description Hastelloy B-3 Bar

Hastelloy B3 is a nickel-based high-temperature alloy, mainly composed of nickel, molybdenum, cobalt and other elements. This alloy material is optimized on the basis of Hastelloy B2.  Improving the thermal stability of the material significantly enhances the corrosion resistance, while also effectively improving the hot forming and cold forming performance. Hastelloy B3 bars have been increasingly used in the production and manufacturing of chemical equipment. Besides, Hastelloy B3 material has many unique properties. Its high elongation provides favorable conditions for cold forming operations. Compared to austenitic stainless steel, Hastelloy B3 bar is harder and therefore requires greater pressure during cold forming or step forming processes.


Product Parameters

Product Name

Hastelloy B-3 Bar

Outer Diameter

Round Bar

4mm-500mm

Hexagon Bar

18mm-57mm (11/16″ to 2-3/4″)

Square Bar

18mm-47mm (11/16″ to 1-3/4″)

Flat Steel

1/2 "to 10", Thickness: 2mm-150mm, Can provide customized

Length

1-6 meters, Length can be customized

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.

Certificate

ISO, SGS, BV

Production Technology

Hot Rolling, Cold Rolling

Chemical Composition
Mechanical Properties

C

AlSiPSTiVCrMnFeFeNiCuZrNbMoTaWNot MO
0.01 max0.5 max0.10 max0.03 max0.01 max0.2 max0.2 max1.0 - 3.03.0 max1.0 - 3.03.0 max65.0 min0.2 max0.1 max0.2 max27.0 - 32.00.2 max3.0 max94.0 - 98.0

Tensile Strength (ksi)

0.2% Yield Strength (ksi)Elongation% in 2 inches
1105140

APPLICATIONS &INDUSTRIES

B- 3 is used in chemical processes, vacuum furnaces, mechanical parts in reduced pressure environments, etc.
